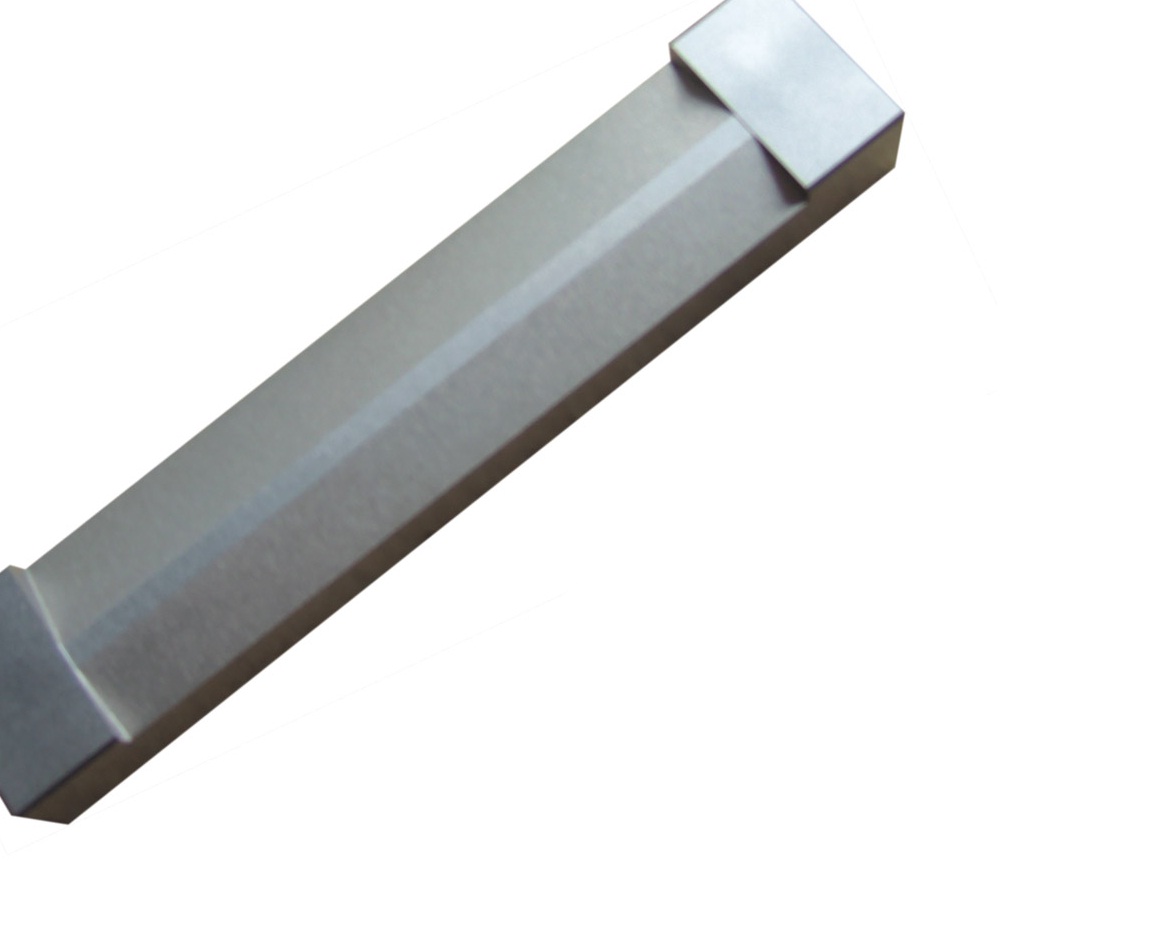

TEK TARAFLI APLİKATÖRLER




      The Bar-Type One-Sided Applicator is made using modern technology of metallurgy with a precision grinding machine. The accuracy of the Gap Depth is ±1.0µm（50µm and below）and or 2% of Full Scale. It is designed with ASTM D 823-25 and ASTM D 3022.

        It is made of high-grade, corrosion-resistant stainless steel 440C.





Main Technical Parameters

■ Effective Wet Film Width ：100mm

■ The total length：128mm

■ Ordering information

BGD 201/1： 25µm
BGD 201/2： 37.5µm
BGD 201/3：50µm

BGD 201/4： 75µm
BGD 201/5： 100µm
BGD 201/6：125µm

BGD 201/7： 150µm
BGD 201/8： 200µm
BGD 201/9：250µm

BGD 201/10： 300µm
BGD 201/11： 350µm
BGD 201/12：400µm

BGD 201/13： 450µm
BGD 201/14： 500µm
BGD 201/15：600µm



İKİ TARAFLI APLİKATÖRLER




      The U shaped-Type Two-Sided Applicator is made using modern technology of metallurgy with a precision grinding machine. The accuracy of the Gap Depth is ±1.0µm（50µm and below）and or 2% of Full Scale. It is designed with ASTM D 823-25
        It is made of high-grade, corrosion-resistant stainless steel 440C.





Main Technical Parameters

■ Wet Film Width of：80mm

■ The total length：100mm

■ Ordering information
    BGD 202/1：（25µm， 50µm）
    BGD 202/2：（75µm，100µm）
  BGD 202/3：（150µm，200µm）
    BGD 202/4：（300µm，400µm）


Küp Aplikatör

      This small applicator is available with 12.7 film width （overall width respectively 25mm）. It has 2 gap sizes, machined into each application face. Ideal for application of parallel film stripes. This applicator is recommended for use in conjunction with BGD 261 Drying time recorder.





Main Technical Parameters

■ Wet Film Width of：12.7mm

■ The total length：25mm

■ Ordering Information
      BGD 203/1：（37.5µm， 75µm）
   BGD 203/2：（75µm， 150µm）

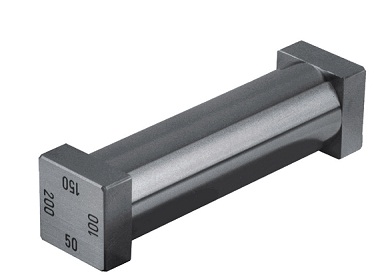

Dört Taraflı Aplikatör

    Aflexible and easy to use applicator, combining 4 gaps size in one unit. The cylindrical shape provides excellent results particularly on firm substrates and smooth surface. By simply rotation through 90 angles, the next gap size is placed onto the test surface. It is designed with ASTM D 823-25 and made of high-grade, corrosion-resistant stainless steel 440C.






Main Technical Parameters

■ Wet Film Width of：BGD 205→160mm；BGD 206→80mm；

■ The total length：BGD 205→190mm；BGD 206→100mm；

■ Ordering information

      BGD 205（6）/1：（5µm，10µm，15µm，20µm）

   BGD 205（6）/2：（25µm，50µm，75µm，100µm）

      BGD 205（6）/3：（50µm，100µm，150µm，200µm）

      BGD 205（6）/4：（30µm，60µm，90µm，120µm）

      BGD 205（6）/5：（100µm，200µm，300µm，4000µm）

      BGD 205（6）/6：（50µm，75µm，100µm，150µm）

      BGD 205（6）/7：（100µm，150µm，200µm，250µm）

      BGD 205（6）/8：（250µm， 500µm，750µm，1000µm）

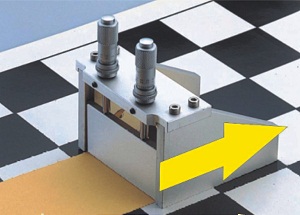

AYARLANABİLİR MİKROMETRE APLİKATÖR







      The blade of this applicator can be accurately adjusted by means of 2 micrometric screws, from 0 to 8 mm, in 10µm increment. Suitable for various precision tests, e.g. research tasks. 4 widths available.









Main Technical Parameters

■ Precision：±2µm

■ The setting scope：0-3500µm

■ Ordering information

     BGD 209/1---Adjustable Applicator（Blade width----50mm）

     BGD 209/2--- Adjustable Applicator（Blade width----100mm）

     BGD 209/3---Adjustable Applicator（Blade width----150mm）

     BGD 209/4--- Adjustable Applicator（Blade width----200mm）

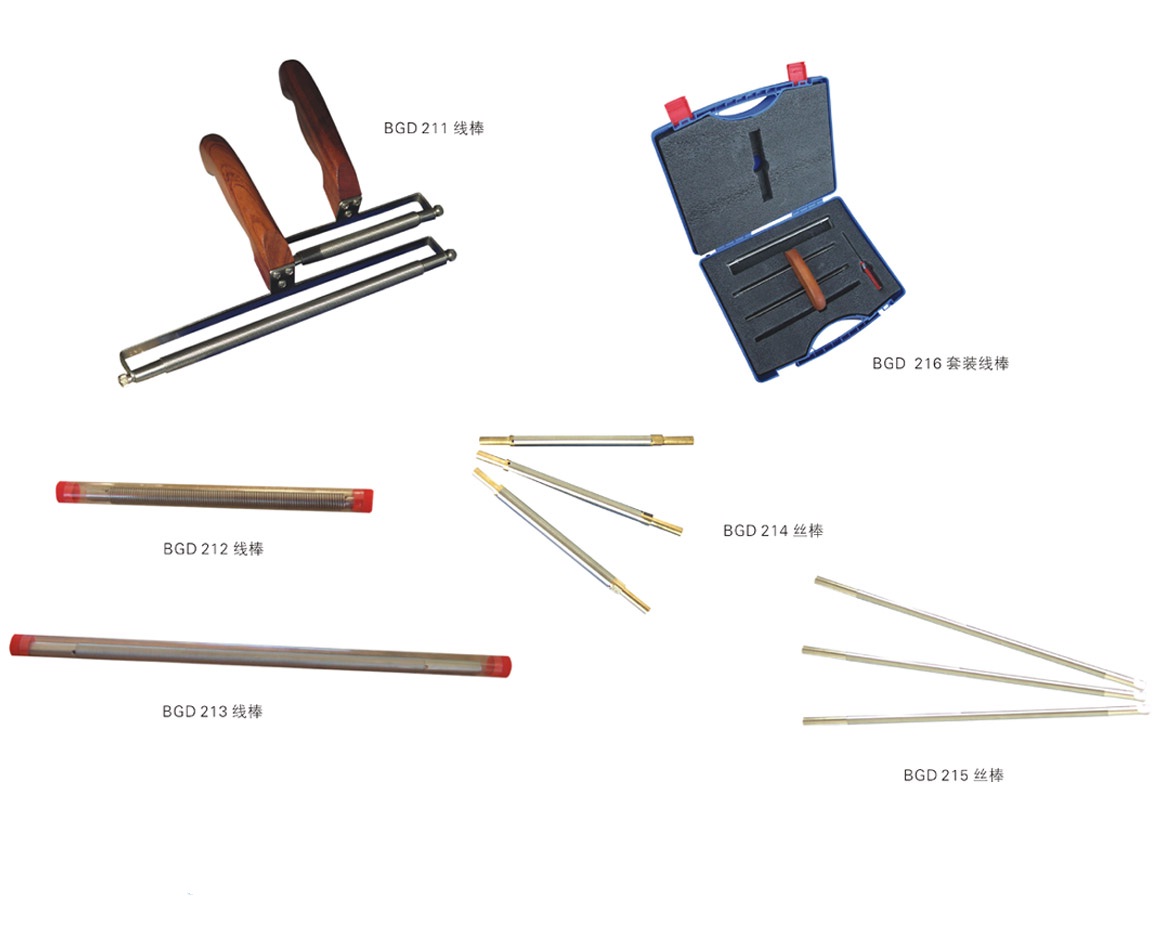

ÇUBUK TEL KAPLAYICILAR



The wire and its rod from the wire-rod applicators are made of stainless steel，which are corrosion-resistance. A coating（Paint or Ink）is being drawdown by a known thickness wire-rod applicator over a substrate（eg. Black/White Test Chart, Glass or Wood Panel, etc.）onto our Drawdown Board. The motion of the drawdown is done by gripping the 2 edges of the applicator or by using the Holder （for BGD 211 Wire Rod Applicators only）

    These applicators provide an economical way to assure the uniformity of thickness of very thin films.

       ◆ Bar and wire manufactured of stainless steel

       ◆ Perfect for very thin films, e. g. foils and paper coating tests

       ◆ Ideal for flexible materials such as paper, cardboard, test charts, foils, leather, textiles, etc.

       ◆ Maximum attainable wet film thickness engraved on bar end

       ◆ Simultaneous drawdown of several samples side by side is possible





       Biuged instruments offer two different diameter types bar ：
        ① Dia 10mm----for BGD 211,BGD212,and BGD 123
        ② Dia 9mm----for BGD 214,BGD 215





Ordering Information	Effective Wire-Wounding Length（mm）	Total Length（mm）	Gripping Space（mm）-Left/Right	Wet Film Thickness（µm）available
BGD 211/6…200	100	130	10/20	6-8-10-12-15-20-25-30-40-50-60-80-100-120-150-200
BGD 212/12…200	200	240	20/20
BGD 213/12…200	300	400	47/47
BGD 214/6…50	100	200	40/40	6-8-10-12-15-20-25
BGD 215/6…50	200	300	42/42
BGD 1151	Holder for BGD 211
BGD 1152	Holder for BGD 212

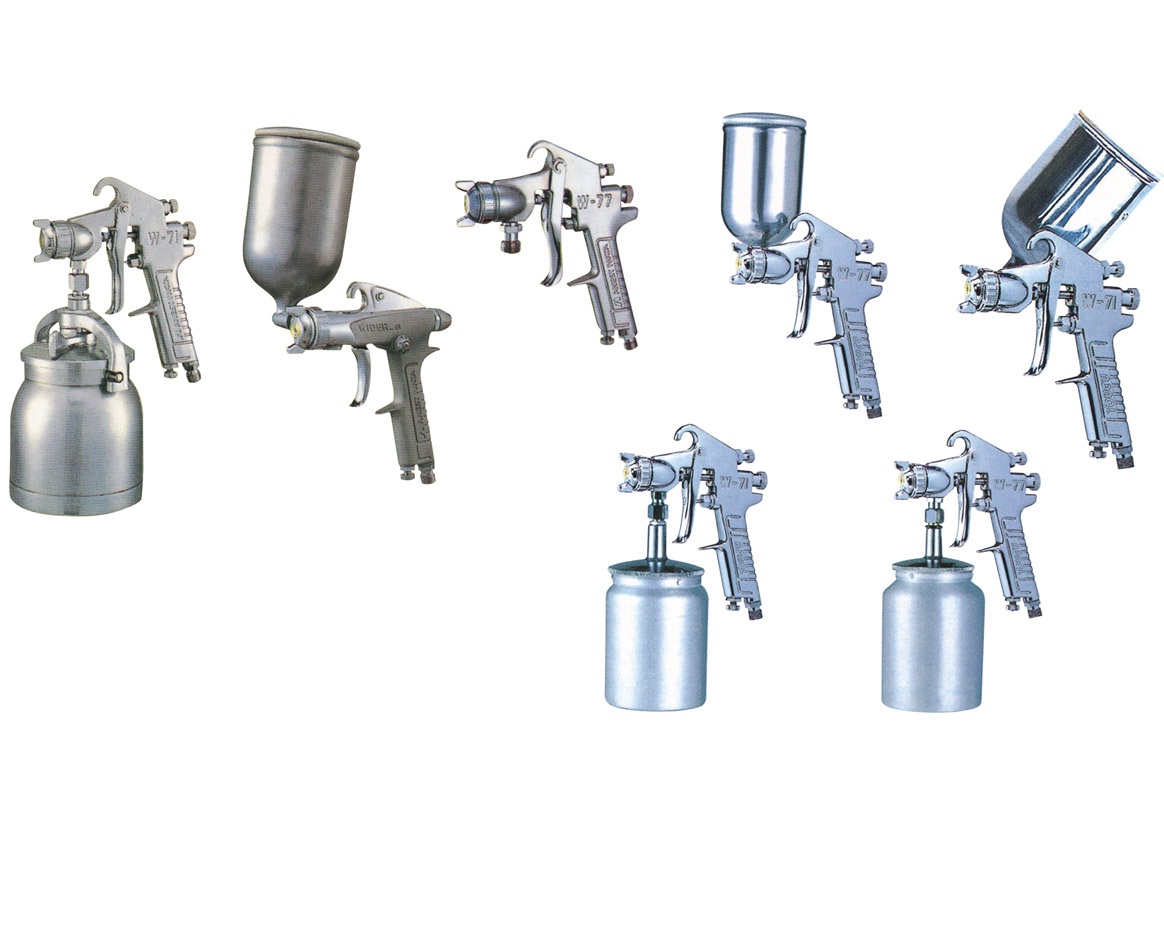

PÜSKÜRTME TABANCASI

   Spray Gun is the most commonly tool when spray paint, Using it can obtain uniform, exquisite film. The good quality Spray Guns can be distinguished from its degree of pulverization, useful time.





Main Technical Parameters

■ Nickel-plated gun body, stable instruction, steady mass centre

■ Uniform pulverization, smooth film

■ Have a large range adjustment to pressure of air

■ Aluminum pot
■ Ordering Information

Ordering Information	Model	Fluid nozzle orifice（mm）	Pattern Width（mm）	Pot Capacity	Air Pressure（kg/cm2）	Air consumption（l/min）
W71-G	Gravity	1.0；1.3；1.5；1.8	125—210	400cc	3.0—3.5	85—250
W71-S	Attract	1.0；1.3；1.5；1.8	105—180	600cc	3.0—3.5	105—180
W77-G	Gravity	1.5；2.0；2.5；3.0	290—330	400cc	3.0—3.5	290—460
W77-S	Attract	1.5；2.0；2.5；3.0	260—300	1000cc	3.0—4.0	260—300
W-101P	Compress	0.8；1.0；1.3；1.5	190-240	---	2.5	270
F-2	Gravity	0.5	230	250	3.0	35

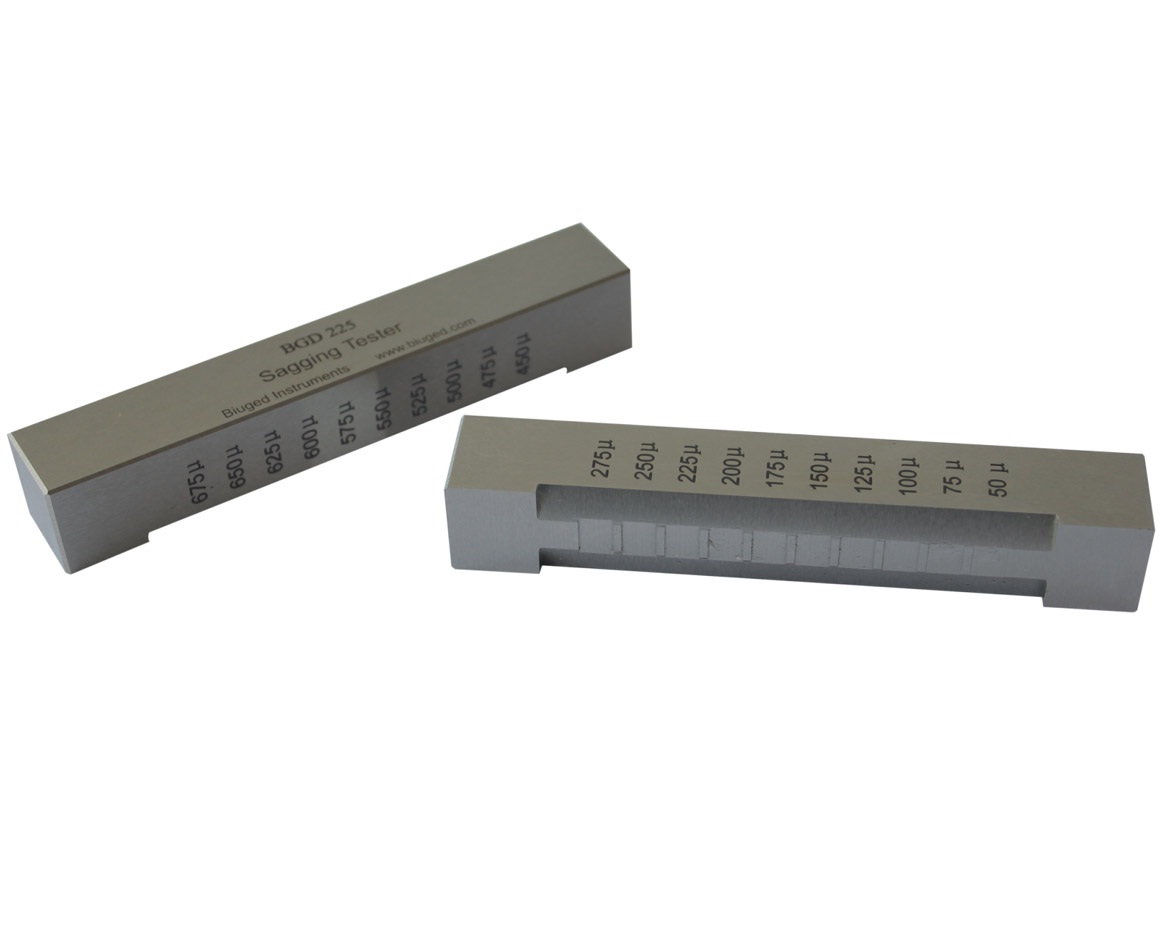

SARKMA TESTİ

 BGD 225 Sagging Tester produced by our company is in accordance with the specification of ASTM D 4400 and ASTM D 373. They are made of corrosion resistant stainless steel, the width of application is 75mm at 6mm per sagging thickness, and the gaps are being separated by a 1mm space as a marking on each sagging for distinctive identification of each sagging.
        They are applicable to determine the relative sag resistance of a series of paints in order to provide the technical parameters for the paint application on site.



Main Technical Parameters

■ Clearance ranges：

Ordering information	BGD 225/1	BGD 225/2	BGD 225/3	BGD 225/4	BGD 225/5
RANGE	50-275μm	250-475μm	450-675μm	650-875μm	850-1,075μm

■ Difference between adjacent two notches：25μm
■ Overall dimension：120×20×20mm（length by width by height）

■ Weight：0.5Kg





Manual：

        Drawdown the coatings on a material（glass, test chart or board）using the appropriates sagging Thickness Gauges, then place the coated material at vertical position（90º）to the platform（eg： table）.Allow 10 to 30 minutes（depending on the viscosity）for the coatings to sag under gravity. Check out the coating thickness without the sagging effect and the next coating thickness with the sagging effect. With that information, the recommended coating thickness is between the 2 layers of coatings.

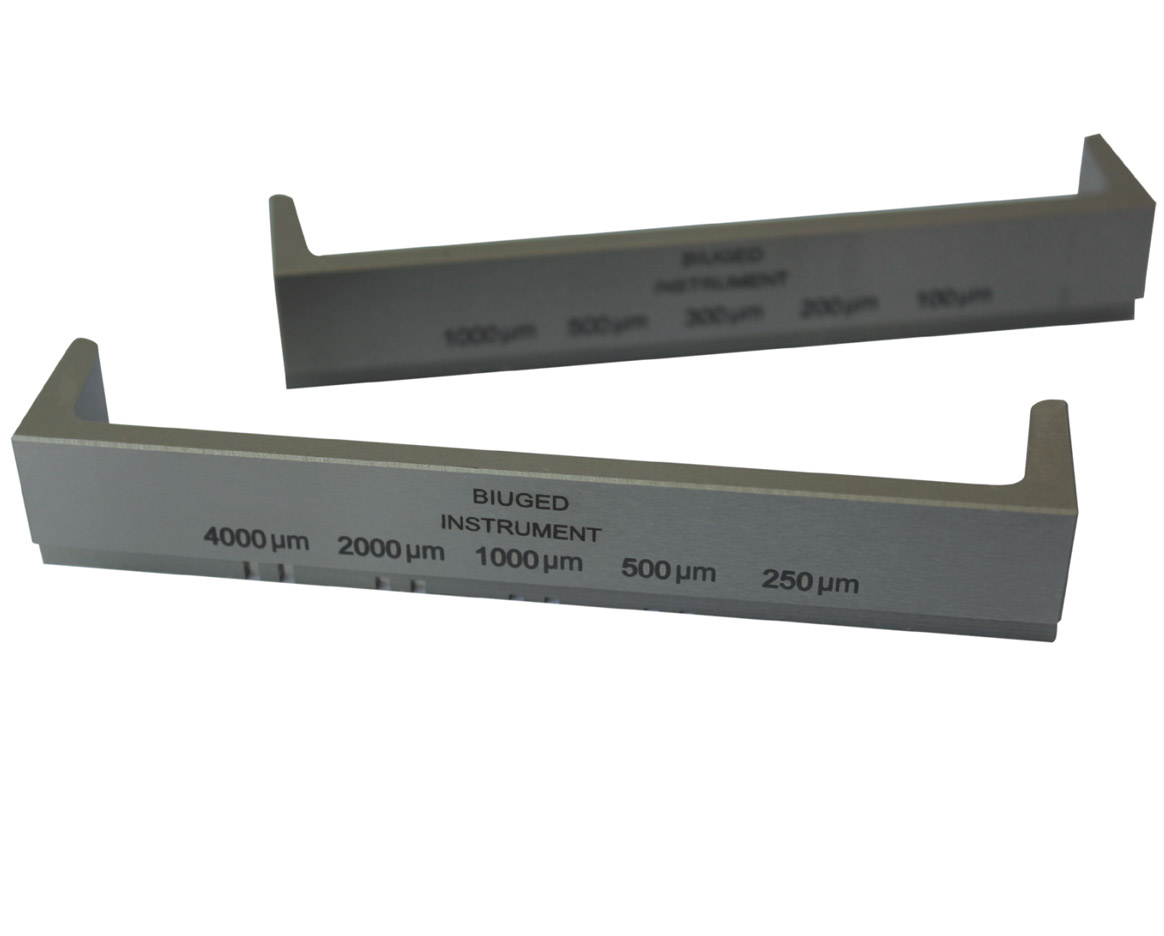

TESVİYE TESTİ

    BGD 226 Leveling Tester is designed to determine the relative leveling of liquid coating materials before curing in the laboratory. （Coating materials have to eliminate surface defect during drying）. It comply with ASTM D2801-1994 （BGD 226/1）and NYPC（BGD 226/2）

        It is made of stainless steel with straight scraper fitted with 5 pairs of notches of increasing depth from 100～1000μm（or 250～4000μm ）.

        Once the drawdown has been made on a horizontal, firm surface, leave the coating to cure. Once the coating is dry, identify the thickness at which the pair of film stripes merge.
