Renk Mukayese Ekipmanları




RENK MUKAYESE ÖLÇÜM CİHAZI



        The cabinets come supplied with different lights and are controlled by a microprocessor LCD Screen that shows each Lighting usage Time. Each Button controls the individual set of Lights. The CLRClearbutton allows the resetting of the Lighting Usage Time to ZERO when new lights are replaced. The ON/OFF Switch button must be switched off during long hoursmore than 3 to 4 hoursof non-operation. This is to reduce the possibility of heat-up as well as to increase the life span of the electronic ballast. All Lights can be switched on at the same time as according to the user needs. The optional Diffused Glass Panel below the lights ensures the elimination of direct reflection of lights to viewing products, There is no Warm-Up time/Flickering of Lights when there is a constant electrical supply. All electrical components used are of low power consumption and heat generation for energy efficiency in .



        The international approved Light Gray Non-Reflective Surface ensures that no light is being reflected from the surface during color matching, so, what you see of your products in our Biuged Color Assessment Cabinets will be as natural as what you view them under the natural color matching conditions. The Non-Reflective Surface has certain degree of roughness not only acts as light absorption when light are illuminated, but it is also scratched-resistance, Many Color-Matching Cabinets do not have this dual ability.





Main Technical Parameters

■ Time running display for each light source.

■ Auto conversion between light sourcesDifferent spectrum with same color.

■ No need warm-up andno flicker, enable quick and reliable assessment to sample.

■ Low power-consumptionNo heat emission Efficient illumination.

■ Small size and convenient to use for laboratory orproduction line.

■ Weight35Kg

■ Dimensions710x530x570 mm

■ Ordering Information

Light source

Ordering Information

D65

TL84

F/A

UV

CWF

U30

BGD 274





BGD 275



BGD 276



■ Light source

Light source

Description

Number of Light

Power

Color temperature

D65

International-standard Artificial Daylight

2 pcs

18W

6500K

TL84

Applicable to stores in Europe, Japan and China

2 pcs

18W

4000K

CWF

Cool White Fluorescent

2 pcs

18W

4150K

F/A

Comparison referential light source,
Applicable to family/hotel

4 pcs

40W

2700K

UV

Ultraviolet light source

1 pc

20W

Wavelength 365nm

U30

Warm White Fluorescent

2 pcs

18W

3000K



    Optional accessoriesBGD 277---45° normative standhas accurate angles and has the same color as the Color Assessment Cabinet/this makes a non-interference viewing effect).



    NoticeBiuged instruments also offer some special sizeDimensions1310x600x800 mm  color assessment cabinets according to customer’s different demand.

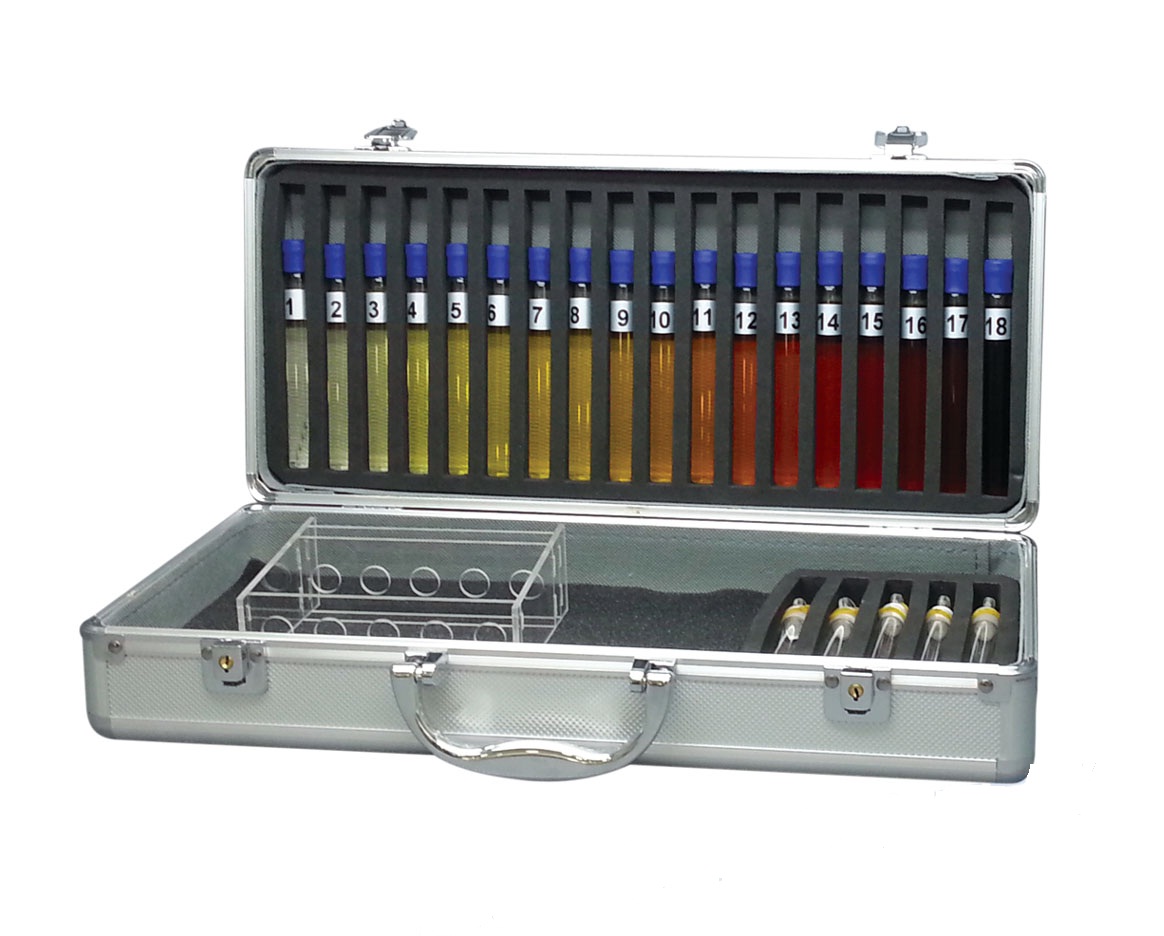

Iron-cobalt Color Comparison Tester



        It is designed to measure the color of the varnish ,thinner and other transparent liquids.

        Take a certain amount of ferric chloride hydrochloric acid solution, potassium dichromate sulphuric acid solution, and cobalt chlorite hydrochloric acid solution, The above three solutions will be mixed together at a certain percentage in order to get 18 solutions with different colors and densities. Then put them into the tubes and sealed separately.

        The visual method is used to assess via the comparison with a series of anvil standard tone scale solutionwhich is marked with the color gradation number. The result is shown in 1-18.





Main Technical Parameters

■ Colorless glass tube with the internal diameter of Φ10.75±0.05mm,and the height of 114±1mm.

■ Color comparison box(self-prepared)

■ The test must be taken at the temperature of 23±2

■ Ordering InformationBGD 420---Iron-cobalt Color Comparison Tester

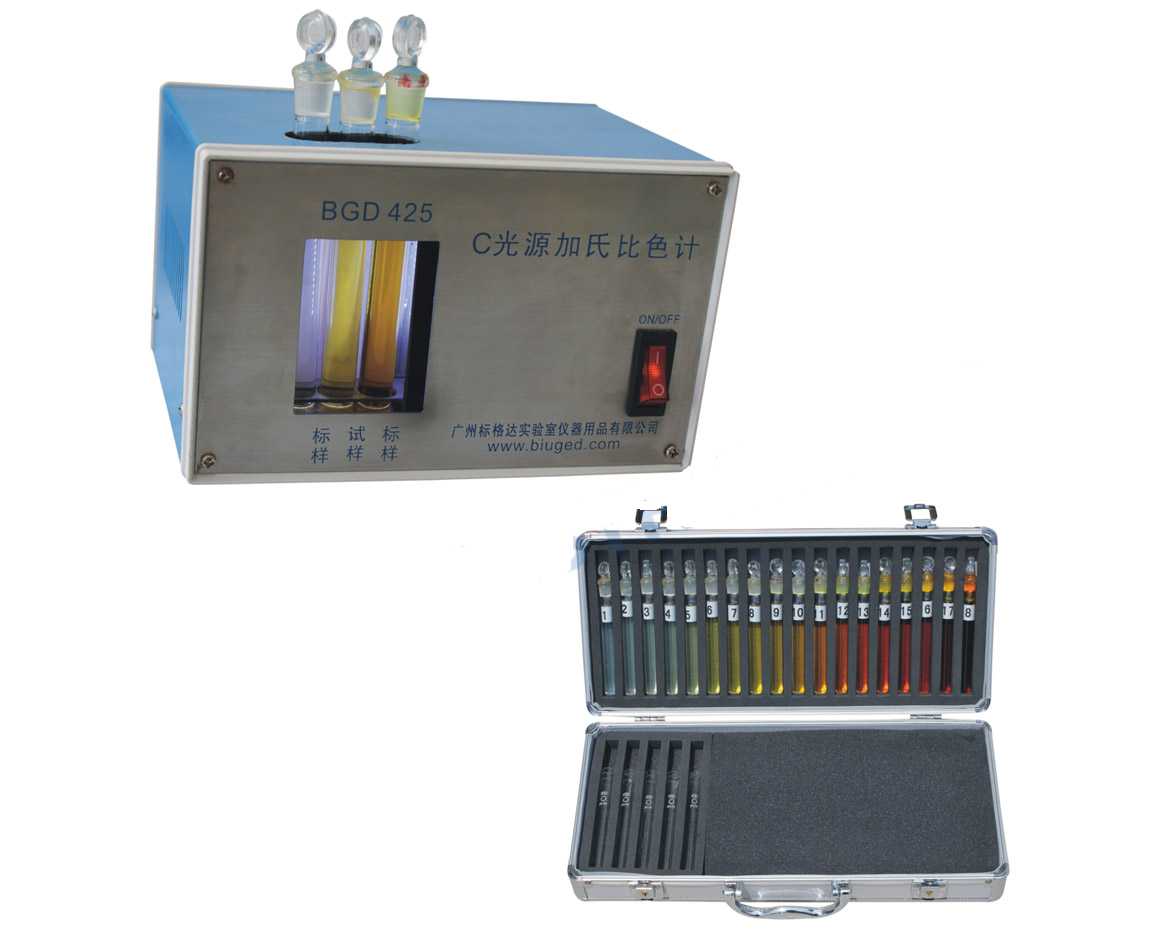

Gardner Color Comparator with C Illuminant






        Colour variations of transparent liquids such as varnishes, solvents, resins, tensides, oils et.,may be caused by contamination or impurities, process inconsistencies, or excessive weathering.Therefore,reliable and accurate measurements are essential to ensure consistent production standards.



        BGD 425 Gardner Color Comparator with C Illuminant is used to test the color of drying fatty oil, varnish, fatty acid, polymerized fatty acids and resin. It complies with ISO 4630 standard.



Main Technical Parameters
■ Working Standard18 pcs different standard liquid color which are prepared according with ISO 4630
 Glass tubes
Colorless and transparent with inner diameter is 10.65± 0.025mm,external diameter is 12.5mm and the length is 114mm
 Illuminant
Its energy of spectra is similar with C light resource of CIE. And the ray come through breadth wise the working standard color and sample
 The environment is neutral color, the two working standard colors and one sample are within eye shot

Ordering InformationBGD 425---Gardner Color Comparator with C Illuminant

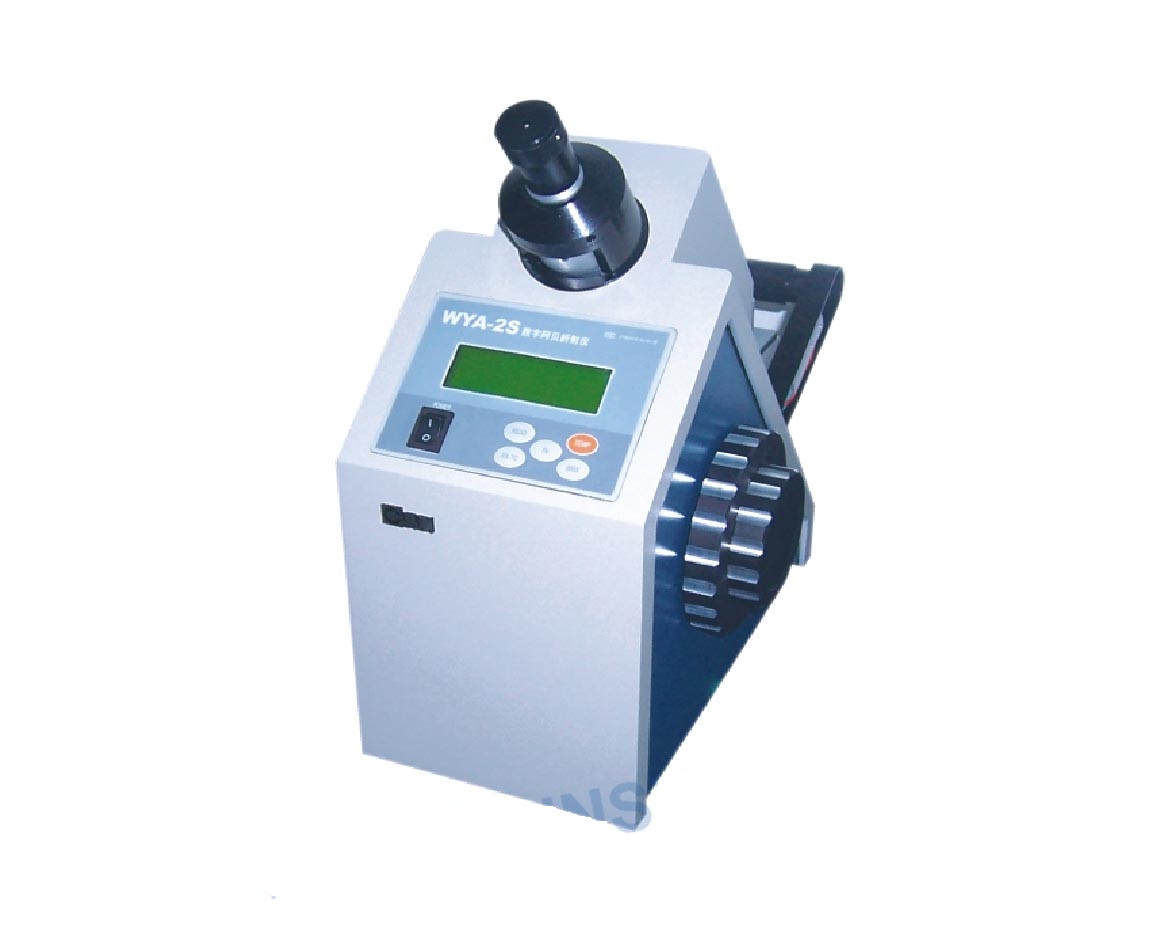

DİJİTAL ABBE REFRAKTOMETRE




  A refractometer measures the extent to which light is bent i.e. refracted when it moves from air into a sample and is typically used to determine the index of refraction aka refractive index or n of a liquid sample.

The refractive index is a unit-less number, between 1.3000 and 1.7000 for most compounds, and is normally determined to five digit precision.

The refractive index is commonly determined as part of the characterization of liquid samples, in much the same way that melting points are routinely obtained to characterize solid compounds. It is also commonly used to
         Help identify or confirm the identity of a sample by comparing its refractive index to known values.

         Assess the purity of a sample by comparing its refractive index to the value for the pure substance.

         Determine the concentration of a solute in a solution by comparing the solutions refractive index to a standard curve.





      BGD 252 Digital Abbe Refractometercan be used widely in petroleum, chemical, pharmaceutical, sugar refining and food industries,as well as in related colleges,universities and scientific research institutions for measuring the refractive index nD of transparent of sub-transparent liquid,or solid substance.it also can be used to measure the Brix(BX) of the sugar solution,and to correct the affect of temperature on the Brix automatically.

 Visual aim and LCD display

 Correct automatically effection of temperature on the Brix.

 Prism is made of hard glass
         RS232 interface



        Main technical parameter

     ■ Measurement rangerefractive index):1.30001.7000         Concentration   095%

     ■ Measurement precisionrefractive index):±0.0002               Concentration  ±0.1%

     ■ Min. readingrefractive index):   0.0001                                    Concentration   0.1%

     ■ Range of temperature correction 1545

     ■ Display scope of temperature 050

     ■ Weight of instrument10KG

     ■ Size330mm×180mm×380mm

     ■ Ordering informationBGD 252---Digital Abbe refractometer
