UV hızlandırılmış Yaşlandırma Kabini

UV Katılaştırma Kabini

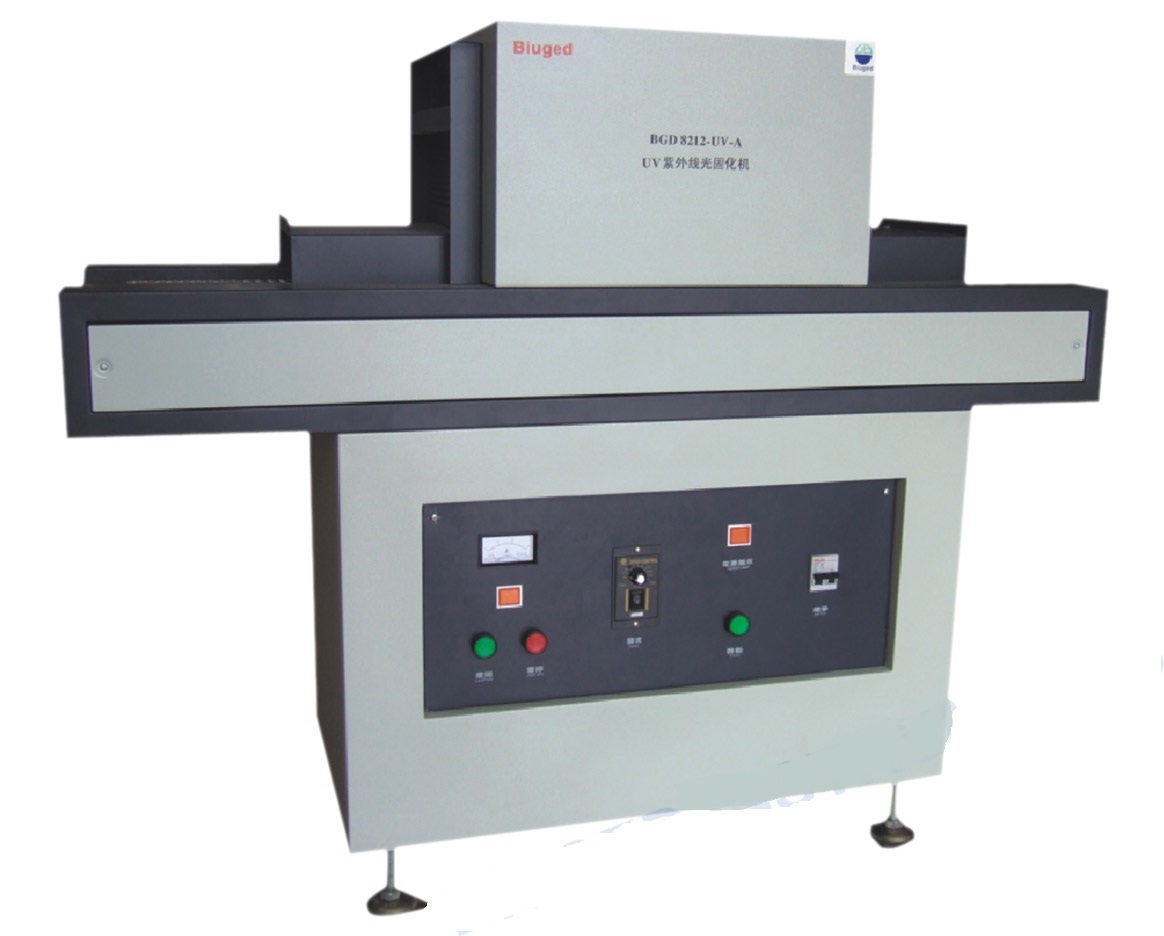

 UV Solidify Machine is used widely for UV paint, UV glue, UV inks, UV gloss ink ;It is small, economic and practical as its selling point, suitable for small batches, trial production or used in small enterprise and also is welcomed in painting, glue manufacturers for research and development.
        ◆ Portable and small with one UV lamp installed, which is suitable for operation line and also handwork;

        ◆ Easy to operate; one of mass production models, components selected are standardized; simple operation and maintenance with low cost;

        ◆ Reasonable exhaust design with effective cooling system;

        ◆ Speed can be set free within the effective scope;









Main Technical Parameters:

Ordering Information  →

BGD 8212

BGD 8213

BGD 8313

BGD 8222

BGD 8223

BGD 8323

Parameters ↓

Power supply

220VAC/50HZ

380VAC/50HZ

Total power

2.2KW

2.2KW

3.5KW

5.0KW

5.0KW

7.2KW

UV lamp Power

2KW

2KW

3KW

2KW

2KW

3KW

Number of Lamp

1 pc

1 pc

1 pc

2 pcs

2 pcs

2 pcs

speed range

0-10 m/min

Belt Material

Stainless steel or TEFLON

Belt Width

200mm

300mm

300mm

200mm

300mm

300mm

Entrance Height

100mm

Cooling System

Air Cooling

Main Wavelength

365 nm

Lamp Life

600hours , over 75% intensity

UV lamp type/Unit power

High-pressure mercury lamp;100w/m
