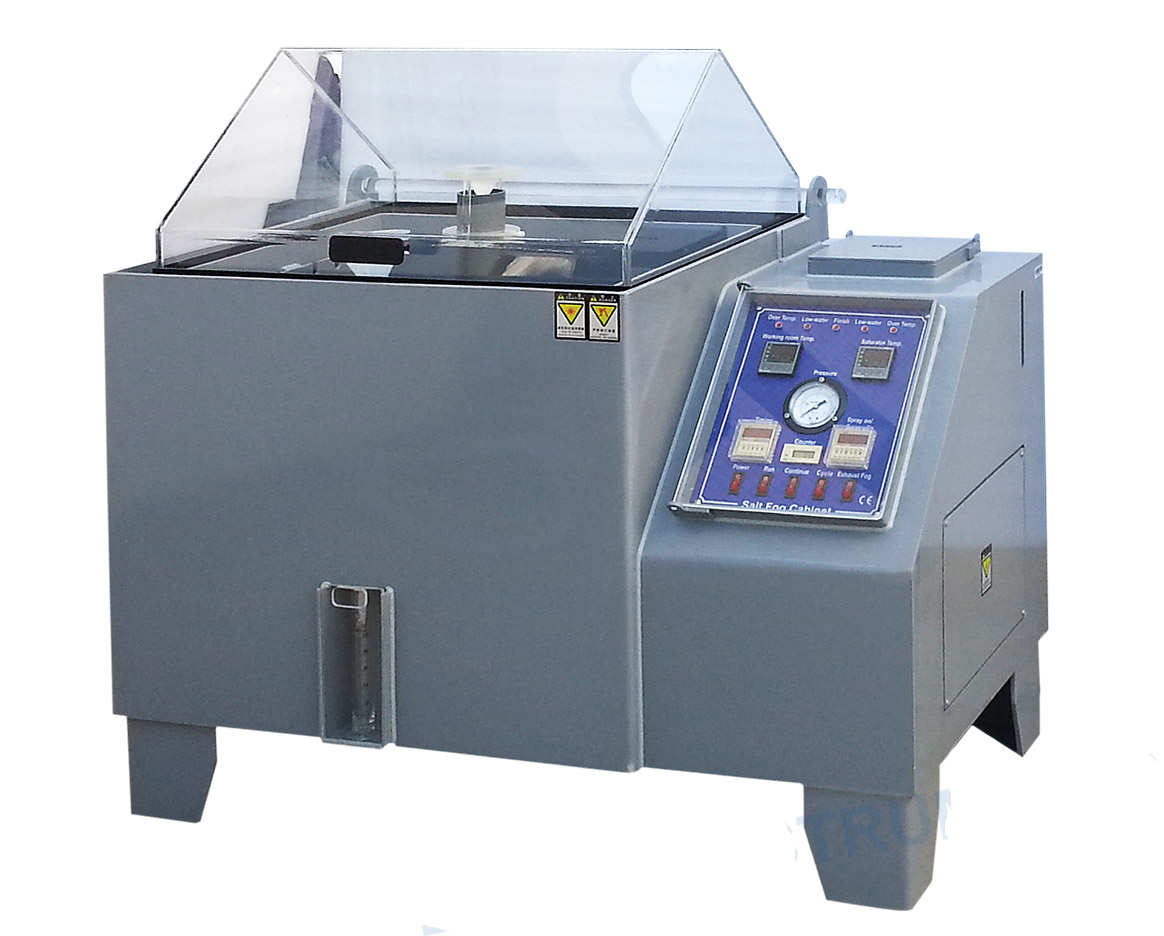

Tuz Korozyon Kabini
https://www.youtube.com/watch?v=qet29YxxaBI
Main Technical Parameters:
|
Ordering Information TechnicalParameters： |
BGD 880 |
BGD 881 |
BGD 882 |
|
The scope of adjustable temperature |
From ambient +5 to 50℃ |
||
|
Fluctuating degree of temperature |
≤± 0.5℃ |
≤± 0.5℃ |
≤± 0.5℃ |
|
Homogeneous degree of temperature |
≤ 2℃ |
≤ 2℃ |
≤ 2℃ |
|
Deviation of temperature |
≤± 2℃ |
≤± 2℃ |
≤± 2℃ |
|
Sedimentation speed of salt fog |
1-2ml/80cm2.h |
1-2ml/80cm2.h |
1-2ml/80cm2.h |
|
Cubage |
108 L |
270 L |
412 L |
|
Interior Dimension（L×W×H） |
450×600×400mm |
600×900×500mm |
750×1100×500mm |
|
Overall Dimension（L×W×H） |
720×1010×1080mm |
950×1550×1290mm |
1680×950×1450mm |
|
Total power |
1.2 KW |
3 KW |
5 KW |
|
Gloss Weight |
175Kg |
300Kg |
500KG |
CCT Kabini
Main Technical Parameters
|
Ordering Information → Technical Parameters ↓ |
BGD 886 |
BGD 887 |
BGD 888 |
|
Temperature Range |
RT +20℃～60℃ |
||
|
Temperature Stability |
≤ 2℃ |
||
|
Temperature Uniformity |
≤ 2℃ |
||
|
Humidity Range |
45%～100% |
||
|
Humidity Deviation |
±3% RH |
||
|
Sedimentation speed of salt fog |
0.5～2ml/80cm2.h |
||
|
Spray Mode |
Continuous Spary or Period Spray |
||
|
Spray Time |
Can set from 1～9,999（H,M.S） |
||
|
Work Room Dimension（D×W×H） |
750×1100×500 |
850×130×600 |
900×2000×600 |
|
Overall Dimension（D×W×H） |
1100×1700×1250 |
1150×2100×1550 |
1250×2800×1600 |
|
Total Power |
4 kw |
5 kw |
6.5 KW |
|
Power Supply |
AC 380V±10% 50HZ |
||
|
Gloss Weight |
175Kg |
300Kg |
500KG |
