UV Yaşlandırma Test kabini

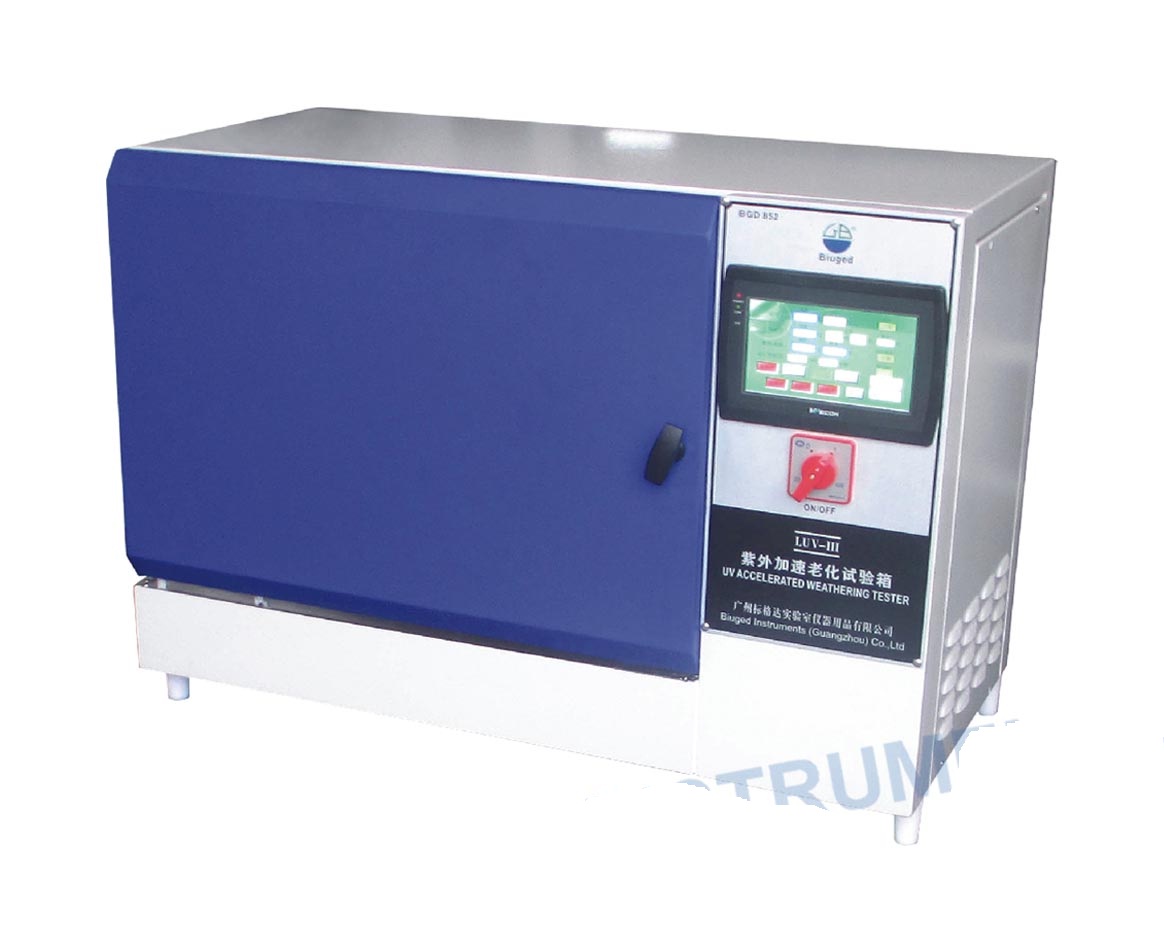

Tezgah Üzeri UV Yaşlandırma Testi



Main Technical Parameters





■ Total power:1.75 KW

■ Power voltage:220±22V/50±0.5Hz

■ Setable temperature range of working room:RT+5℃~80℃

■ Timing range of testperiod:1h~99999h

■ Timing range of sprayperiod :1min-99999min

■ Timing range ofspray  :1min-99999min

■ Rated life of lamp:1600h
■ Max. Irrandianc (New lamp) :UVA Lamps can arrive 0.7W/m2; UVB Lamps can arrive 0.4W/m
2
■ Distance of wall of lamp to the sample:50 mm

■ Speed of sample rotatingframe :3.7rpm

■ Flow of water pump:≤ 7L/min

■ Specification of sample:150mm×70mm

■ Cabinet Size:1000×600×800mm(L×D×H):

■ Net Weight:63kg

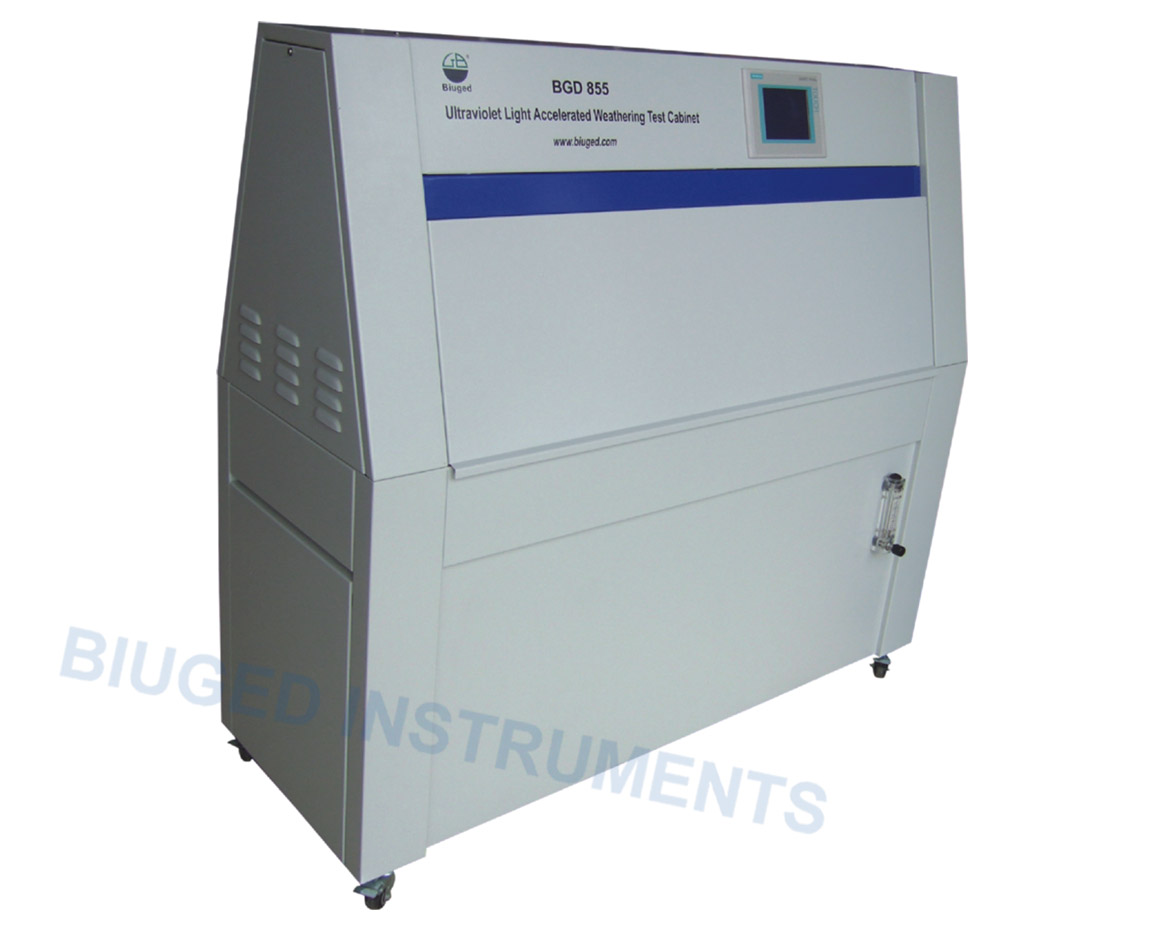

UV Yaşlandırma Kabini



Main Technical Parameters



◆ Light Source: UV-A (wave length 340 nm) or UV-B (wave length 313 nm) ; 40W×8 pcs (The normal use-life is 2,000 hours)

◆ The range of Irradiance: 0.1 W/m2 1.0 W/m2

 Temperature RangeBlack Panel temperatureBPT):RT+10℃-100℃

 Temperature Stability±2

 Interior of cabinetStainless steel -SUS 304 material

 Exterior of cabinetPowder coating on SUS 304

 Insolating Area5175cm2/828in2

 Sample Capacity24 pieces of standard specimen75×150mm standard samples
or 15 pieces of 100×300mm

 Size1400×500×1200mmL×W×H

 Weight: 125 kg

 Total Max. Power3KW

 Power220VAC±10%    50/60Hz15A ( Max Electric Current )

 Adjustable range for water supply: 0-4LPM
