Dincup / Flow Cup

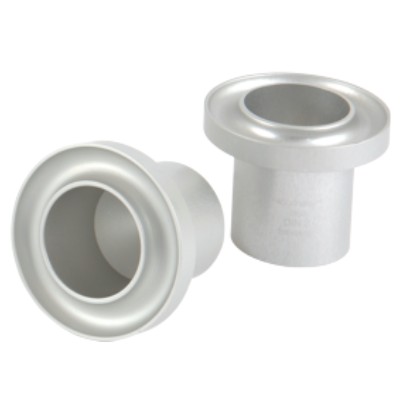

Ford Cups



         Ford Cups produced by our company are in accordance with International Standard ASTM D1200, D333, and D365. For easy measurement of the viscosity of paints, inks, lacquers and other liquids. All Biuged Ford cups are machined anodic oxidation aluminum with removable stainless steel orifice and are guaranteed to be within 2% throughout the recommended range of use.



Main Technical Parameters

■ Internal Diameter50±0.05mm

■ Outer Diameter86±0.1mm

■ Internal Orifice Length10±0.1mm

■ Production Tolerance±2%

■ Details of each Ford Cups





Details/Ford cup

Ford Cup
(2#)

Ford Cup

(3#)

Ford Cup

(4#)

Ford Cup

(5#)

Portable Ford Cup

(4#)

Internal Vertical Height

43±0.1mm

43±0.1mm

43±0.1mm

43±0.1mm

43±0.1mm

 Internal Orifice фmm

2.53 mm

3.4 mm

4.1 mm

5.2 mm

4.1 mm

External Orifice фmm

5.0±0.5mm

5.5±0.5mm

6.0±0.5mm

7.6±0.5mm

6.0±0.5mm

Centistokes Range

25-120

49-220

70-370

215-1413

70-370

Efflux Timesec±0.2

40-100

25-105

20-105

20-105

20-105

Ordering Information

BGD 125/2

BGD 125/3

BGD 125/4

BGD 125/5

BGD 125/4P

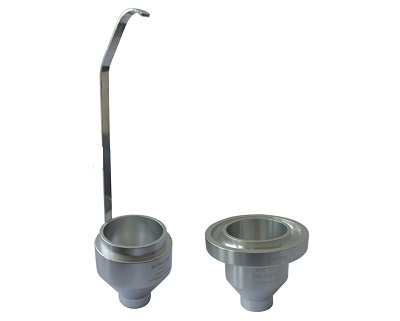

Din Flow Cup


        The Biuged/DIN 4mm Standard and Dip Viscosity Cups are produced with an easily removable orifice. Cup and orifice production tolerance permits replacement of the orifice without loss of acceptable tolerance. In accordance with Deutsche Normen DIN 53211. Biuged offers only the 4mm DIN cup and provides the ISO viscosity cups series for use on materials outside the range accommodated by this cup.

        It complies with DIN 53211 standard and is applied for low viscosity liquids





Main Technical Parameters

■ Volume of Cup:100ml±1ml

■ Orifice Diameter: 4mm±0.02mm

■ Body is made of anodized aluminum

■ Stainless steel orifice, interior polished

 Ordering Information:
    BGD 127/1---Din Flow Cup
    BGD 127/2---Portable Din Flow Cup
