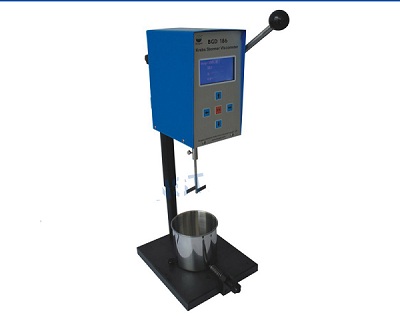

Intelligent Krebs Stormer Viscometer

        BGD 186 is the newest KrebsViscometer which isupgraded from BGD 184. It is used widely for making viscosity measurements onpaints/coatings in accordance with ASTM D562. Digital version with constantspeed motor rotating at 200 r. p. m can get greater accuracy and repeatabilityfor test results.

Comparing with BGD 184, it has these features as blows:

◆ Can show “KU”,“cP” ,“g”，“℃”value simultaneously.

◆ Designed with calibration fuction: With standard oil, the end user can complete calibration independently,no need return it manufacture .

◆ Has a bigLCD which can show test result clearly

◆ Can set test time

◆ With RS 232 communcation port, can print test results

◆ Selfprotection function under over-range.

MainTechnical Parameters：
■ Range：40.2KU～141.0KU     27-5250cP
■ Accuracy：±1.0% offull scale range
■ Repeatability：±0.5% offull scale range
■ Paddle speed：200r/min±0.5r/min
■ Overall dimensions：210mm×180mm×500mm（length bywidth by height ）

■ Package Size：560mm×450mm×280mm

■ PackageWeight：9.2 Kg

■ Ordering Information：BGD 186---Intelligent Krebs Stormer Viscometer

Note:

    The cP reading from the Krebs Stormer Viscometer isnot necessarily agree with cP values measured by other instruments due to:

    1. Unique shear rate of the Krebs Stormer Viscometer paddlespindle.

    2. Uniqueness of the Krebs unit scale
