Esneklik Testi

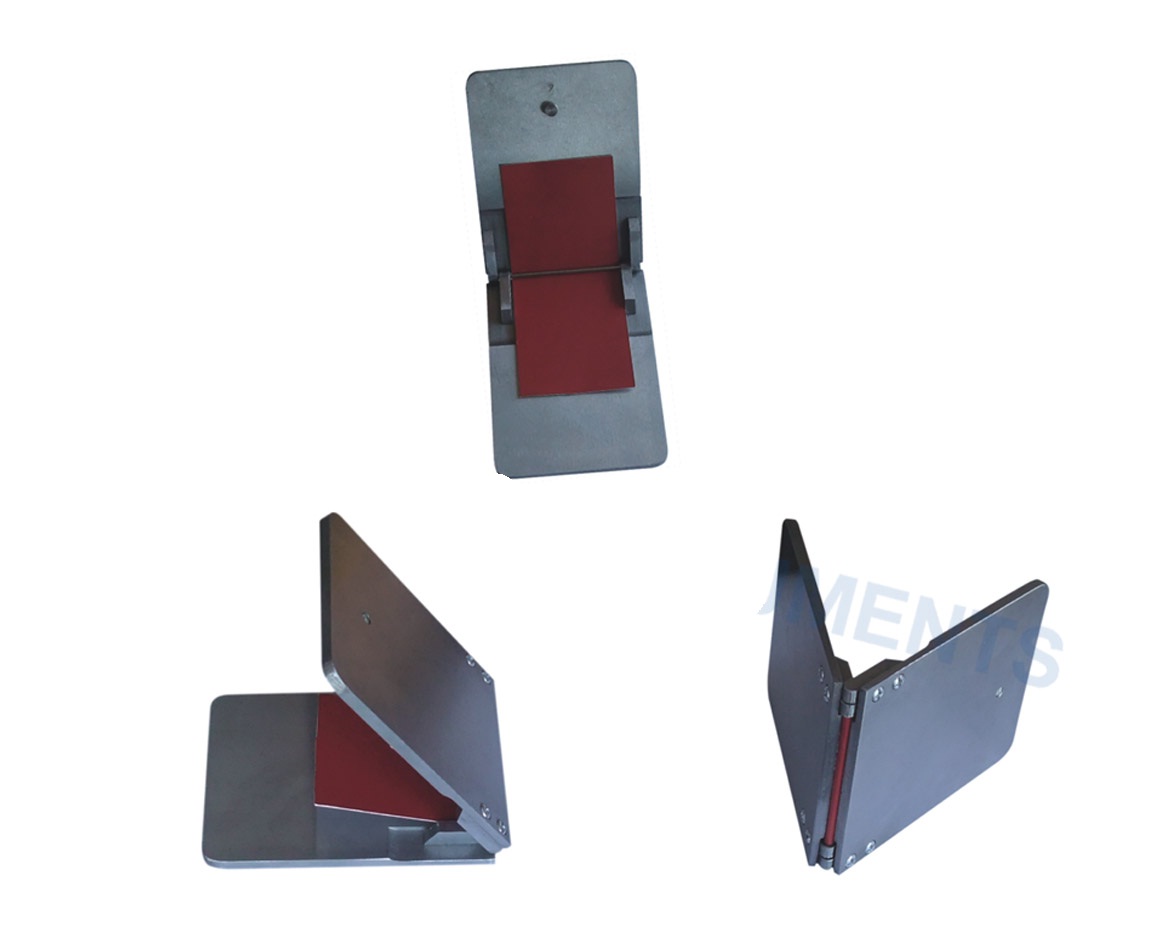

Menteşe Tipi Silindirik Mandre Bükme

Main Technical Parameters

■ Shaft stick diameter：2mm、3mm、4mm、5mm、6mm、8mm、10mm、12mm

■ Thickness of bottom material for the test plate： less than 0.3mm

■  Ordering Information：BGD 561---Hinge-type Cylindrical Mandrel Tester

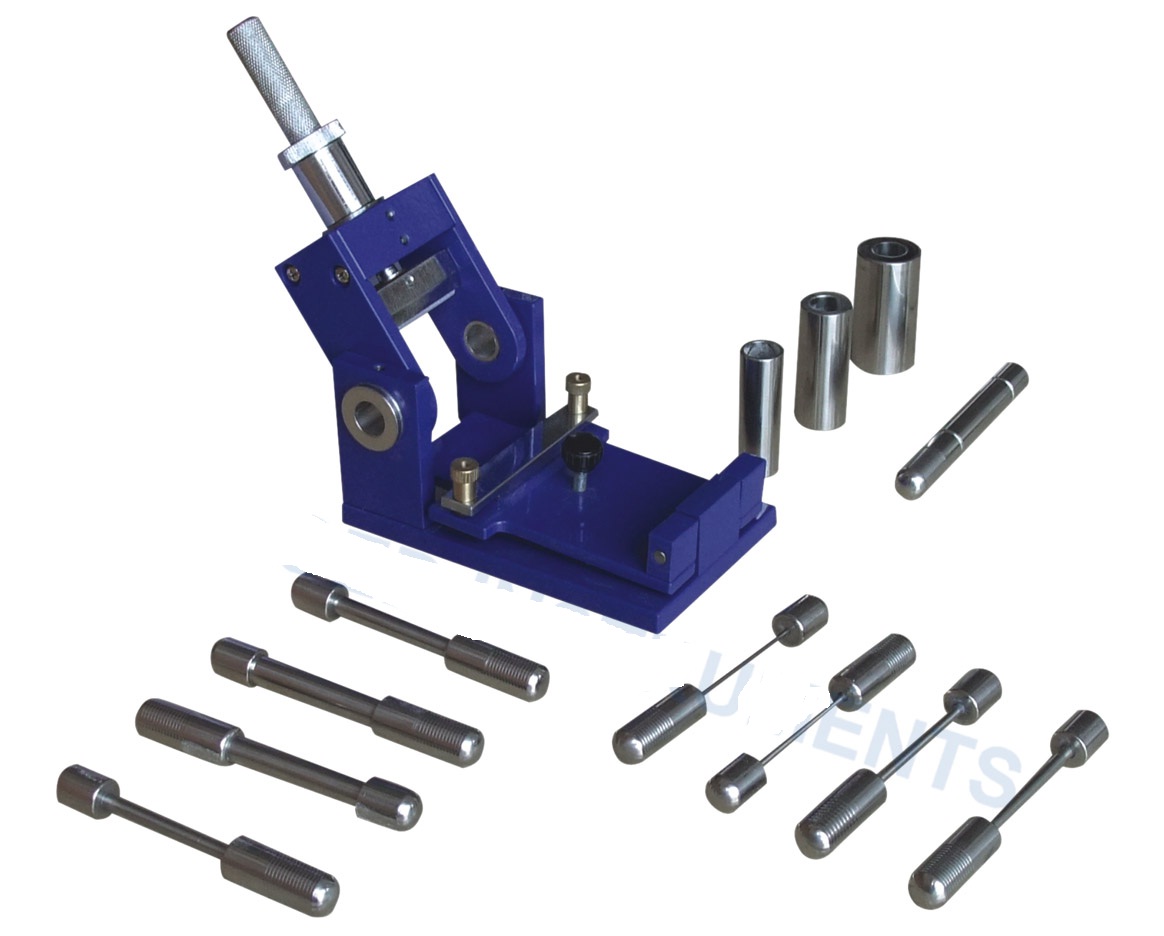

Boya Film Bükülme Testi

Main Technical Parameters

■ Robust stainless steel mandrels, easy to install in seconds

■ Sturdy pre-drilled frame ready to secure on workbench.

■ Shaft stick diameter：2mm,3mm,4mm,5mm,6mm,8mm,10mm,12mm,16mm,20mm,25mm.32mm

■ Thickness of bottom material for the test plate： 50mm width and thickness is less than 1.0mm

■ Ordering Information：BGD 563--- Cylindrical Mandrel Tester

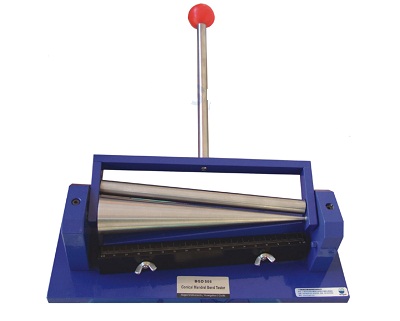

Konik Mandre Bükülme Testi

Main Technical Parameters

■ Dimension of conical mandrel：Big end：Φ38±0.1mm；Small end：Φ3.1±0.1mm；Length：203±0.3 mm

■ Overall dimensions：300×120×83 mm （length by width by height）

■ Weight：7kg

■ Ordering Information：BGD 566---Conical Mandrel Tester

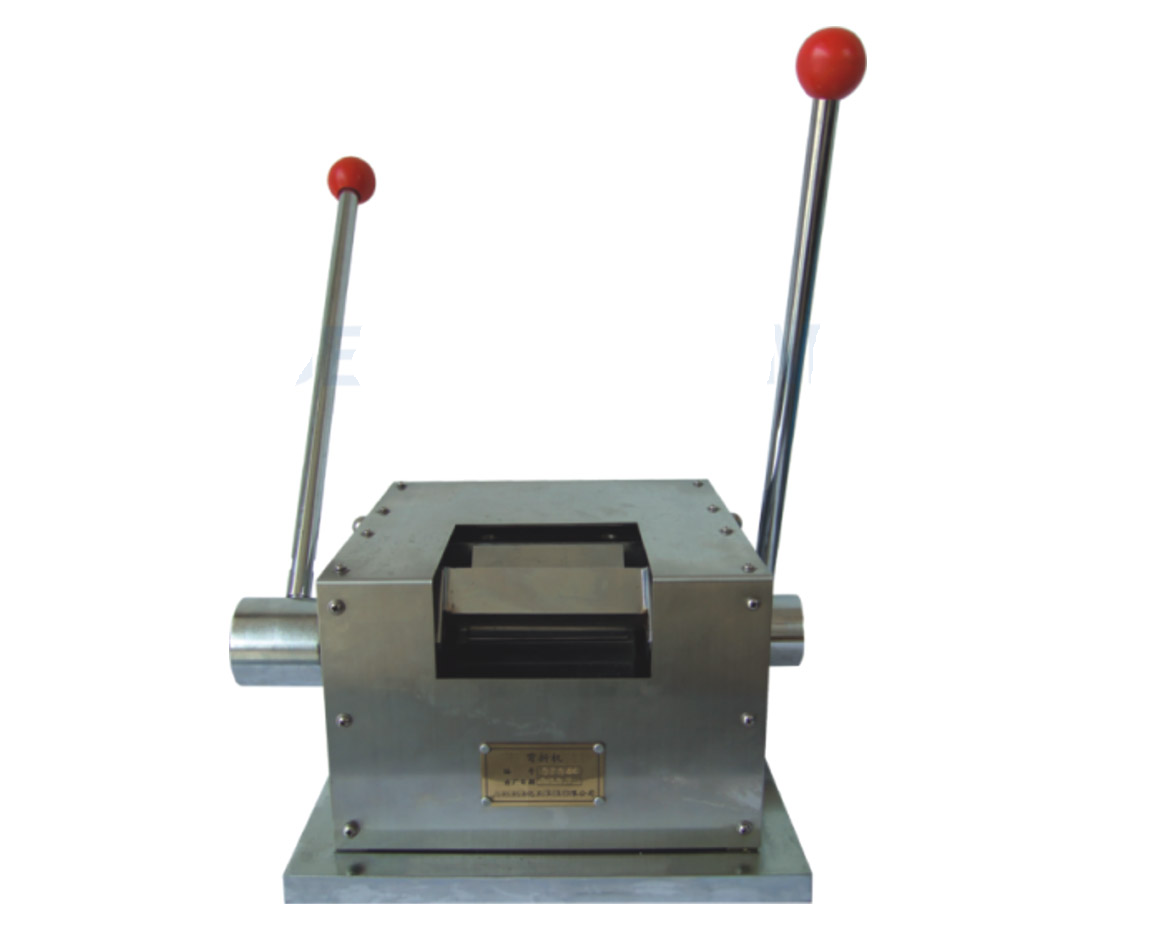

T-Bükülme Testi

MainTechnical Parameters

■ Max. thickness for sample：1.0mm （steel panel）；2.0 mm（aluminum panel）

■ Width of panel：＜100mm

■ Weight：50kg

■ Size：300×300×190mm （length by width by height）

■ Ordering Information：BGD568---T-Bend Tester
