Proofer

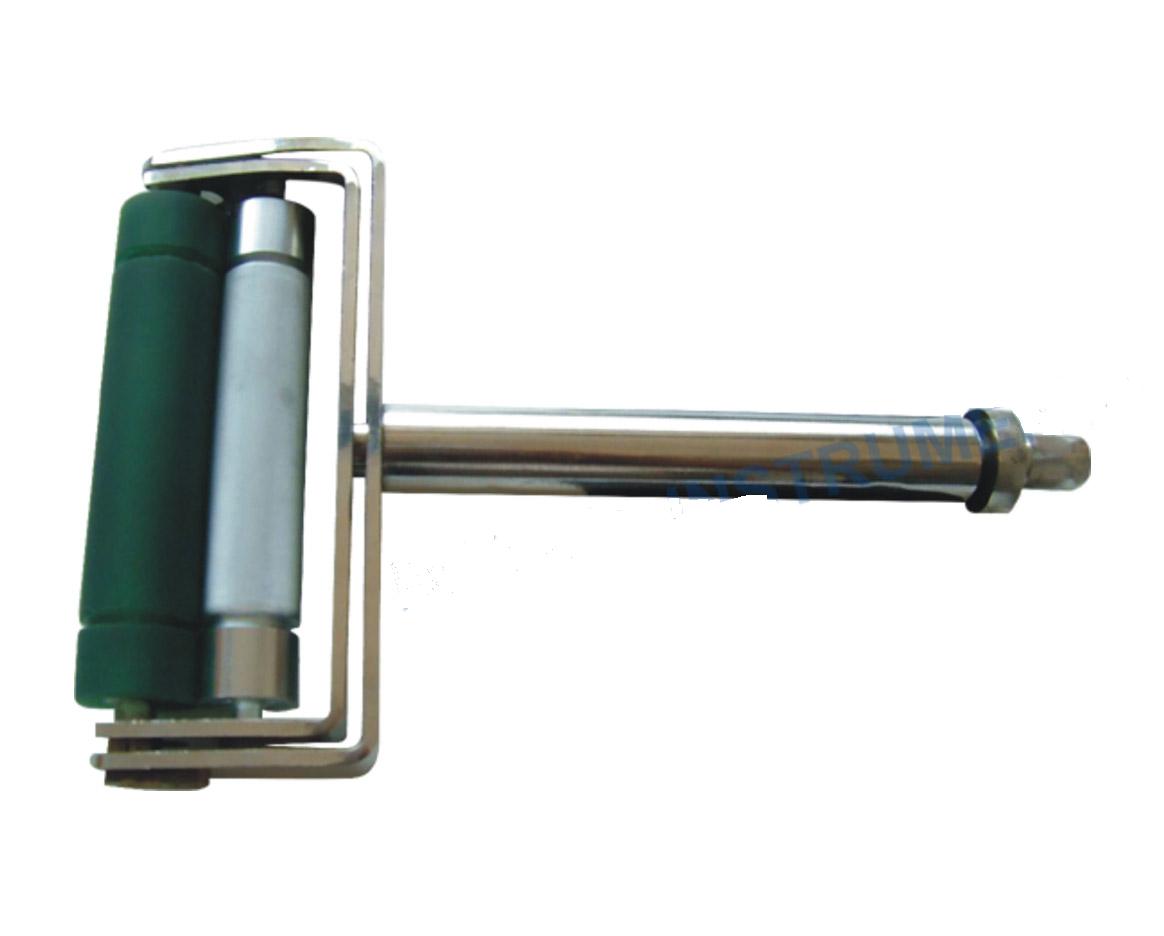

Hand Proofer



This equipment applies, flexographic inks and other fluid coatings onto any substrate to produce repeatable proofs. It is ingeniously constructed and very easy to use. It is an essential tool for all those involved in the manufacture and use of gravure, flexographic inks and other fluid coatings.


Main Technical Parameters

  Proofing width   70mm
  The number of line 100300Line

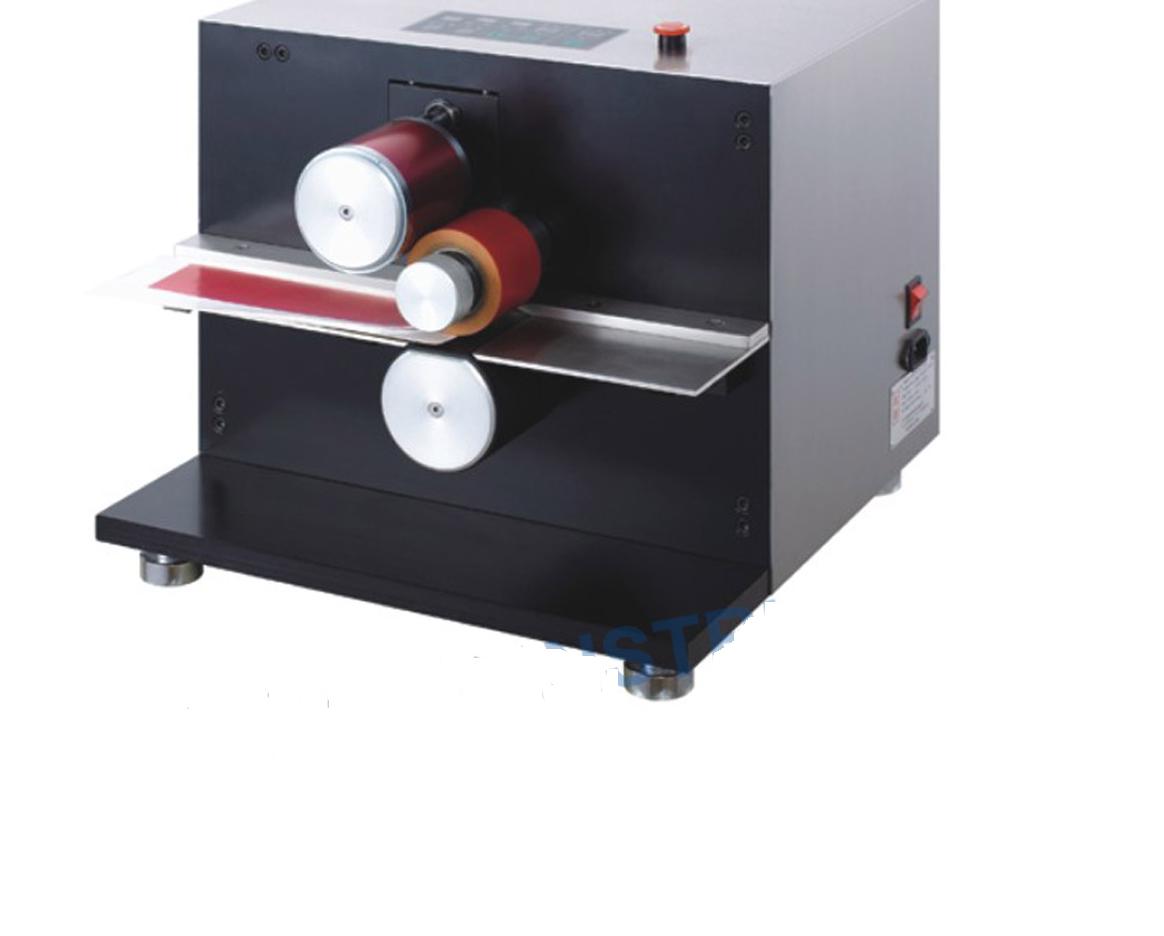

Mürekkep Kalay Plaka Proofer


 BGD 621 Tin Plate Ink Proofer is designed with foreign similar products. It is horizontal and suitable for materials that can not be bent, including metal substrate, tin plate, paper board and plastic board.

        This advanced proofer can distribute ink automatically, and can set distributing ink time freely. The operator also can adjust speed of distributing ink and printing speed.





Main Technical Parameters

■ Size of stamping specimen50×210mmsingle strip

■ Speed of average ink roller0900r/m

 Time of average ink150 second

 Suitable thickness of material0.10.8mm

■ Electrical source220V/50HZPower250Wsaving electrical power design

■ Dimensions of machine420X420X310mm

 Weight64KG

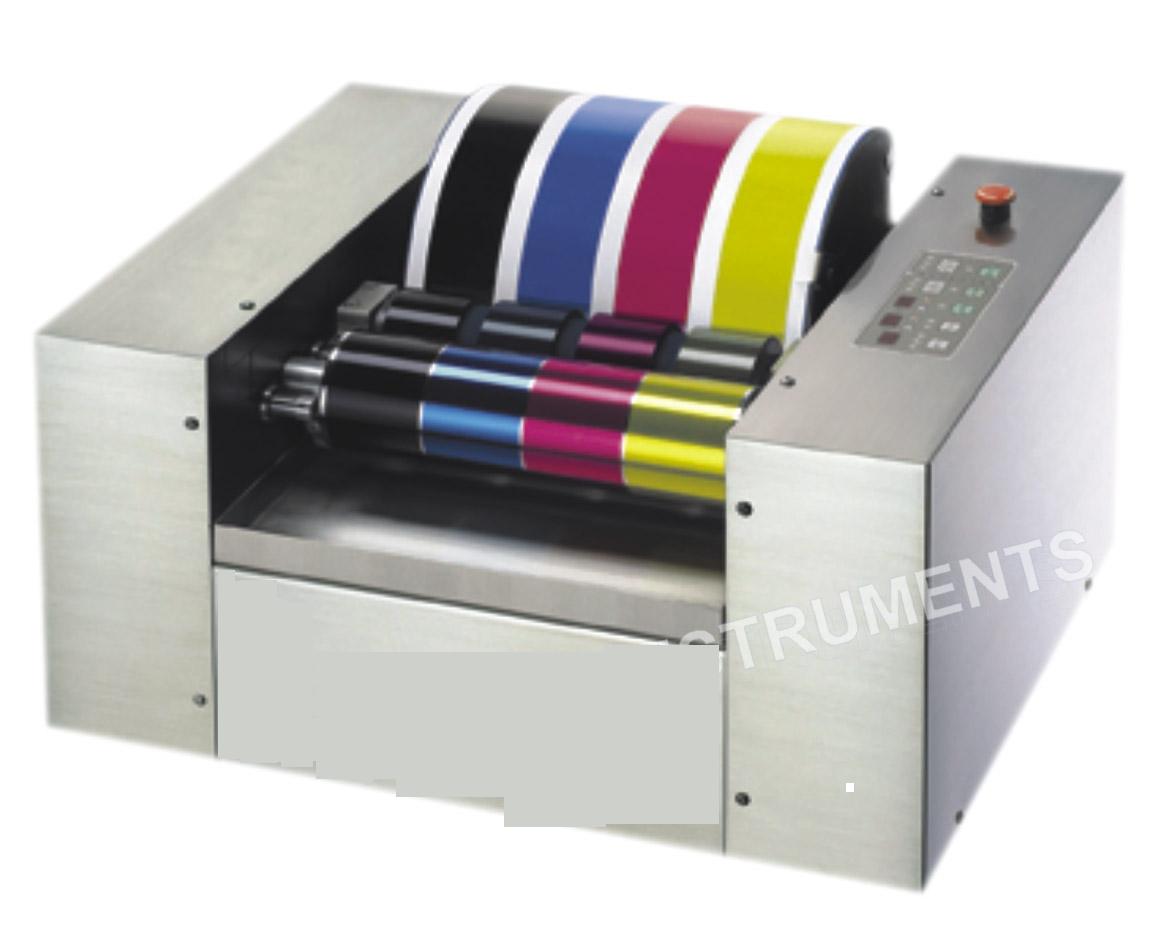

Çok Bölüm Proofing Basım


  BGD 626 Multi-section Ink Proofing Press is the newest product used for the testing the adaptability of ink printing. Compared with other types, it has many features as below:

    ◆ Distribute ink automatically and time and speed for distributing ink are adjustable.

    ◆ Used for lithography printing,letterpress printing or UV ink, UV flexographic ink

    ◆ Printing pressure and printing speed can be set according to the user’s requirments.

    ◆ Can print different substrates,such as book paper, art paper,matt art paper, gray paperboard,film and tinplate etc.

    ◆ High repeatability and reproducibility.

    ◆ High quality, easy to clean and maintenance, simpe and safe for operation.





Main Technical Parameters

 Effective size of coloured strips106mm×215mmtwo colours106mm×215mm/45mm×215mmthree colours45mm×215mmfour colours

 Printing RubberCommon rubber or special rubber for UV ink either-or

 Speed of distributing inkThere are three different speeds 550,700,900 rpmon the control board.Operator also can dismantle shell of machine to do stepless speed regulation.

 Printing speedThere are three different speeds 10,16,22 rpmon the control board.Operator also can dismantle shell of machine to do stepless speed regulation.

■ Distributing ink time1120 second (adjustable)

 Print pressureCan be adjusted precisely externally according to the substrate thickness±0800g

 Distributing ink pressureCan be adjusted precisely externally according to the rubber using status

■ Power supplyAC 220V/50HZPower250Wsaving electrical power design

■ Dimensions of machine525X430X280mm

 Weight75KG

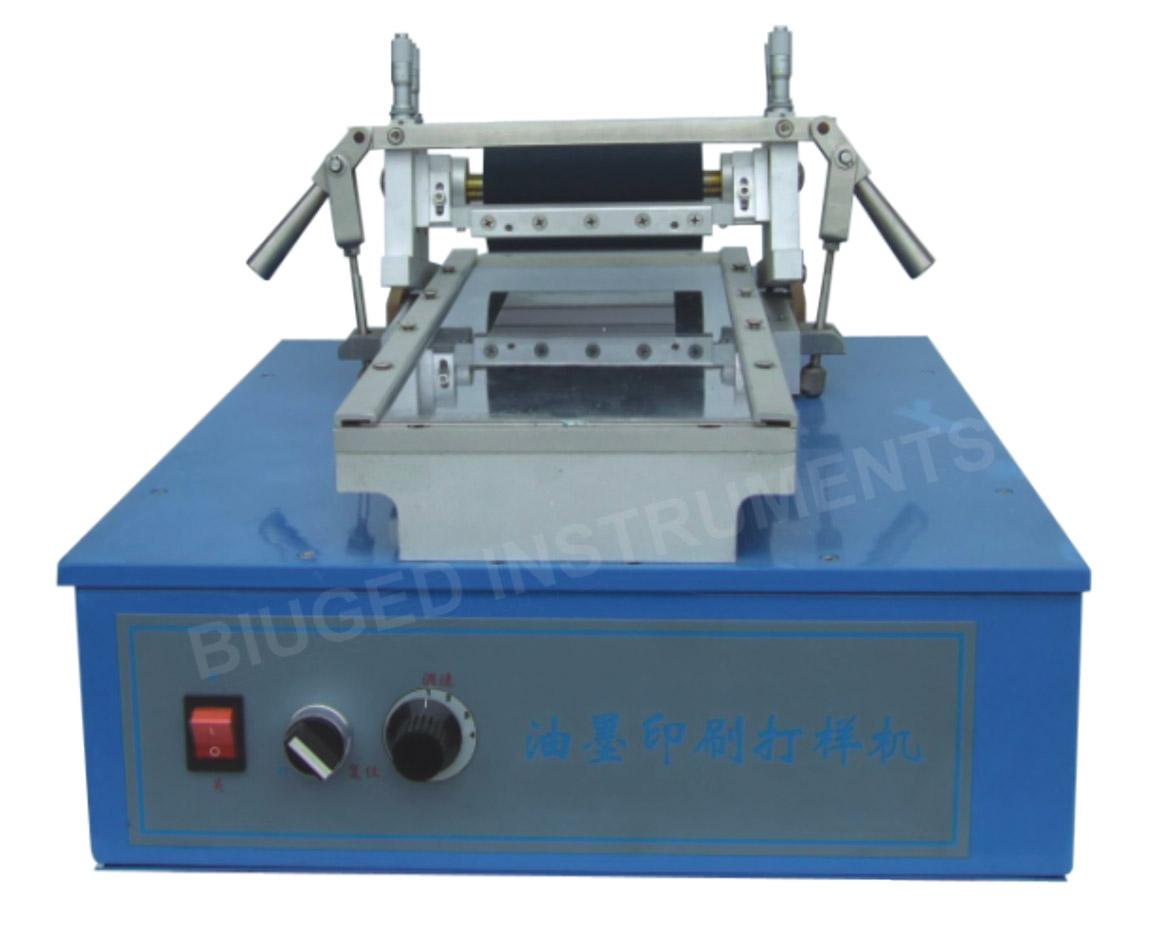

Baskı Proofer


Features:

◆ Almost any flexible substrate can be printed or laminated

◆ Excellent printability ensured by micrometer control

◆ Multiple ink samples may be printed simultaneously for comparison purposes

◆ High printing speeds enable use of inks nearing press viscosity





Ordering Information

Parameter

BGD 622/1

BGD 622/2

BGD 622/3

Applicable for

Gravure Ink

Flexographic Ink

Water based Inks

Motor Power

120W

120W

70W

Impression roller

Φ76×130mm

Φ50×130mm

Φ19×153mm

Roller Hardness

Shore A  55

Shore A  50

Shore A  4550

Printing Speed

Four sorts 20-30-40-45m/min

Four sorts20-30-40-45m/min

4-15 m/min

(Adjustable variable speed)

Printing Length

150mm

150mm

180mm

Power

220V 50Hz

220V 50Hz

220V 50Hz

Overall Size

500×425×350mm

500×425×350mm

500×425×240mm

Wight

26kg

27kg

20kg





 Printing Plate



        Printing plates for use with the Printing Proofer are electronically engraved in exactly the same way as production cylinders. A choice of one or more of the standard plates available will normally be satisfactory.







TYPE

Number of Lines

Lines/inch

Density

%

Remark

A1

150

100

Solid Area Plate

A2*

100

100

B1

150

100-80-60

Single 3 Wedge Plate

B2*

150

100-90-80

C1

150

100-90-80-70

90

1+4 Wedge plate

C2*

300

100-90-80-70

90

C3*

175

100-90-80-70

90

C4*

175

80-60-40-20

100

D1

150

100-95-90-85-80-75-70-60

100-95-90-85-80-75-70-60

Double 8 Wedge Plate

D2*

150

40-35-30-25-20-15-10-5

80-75-70-65-60-55-50-45



   Note: “*” are special plates and need custom-made
