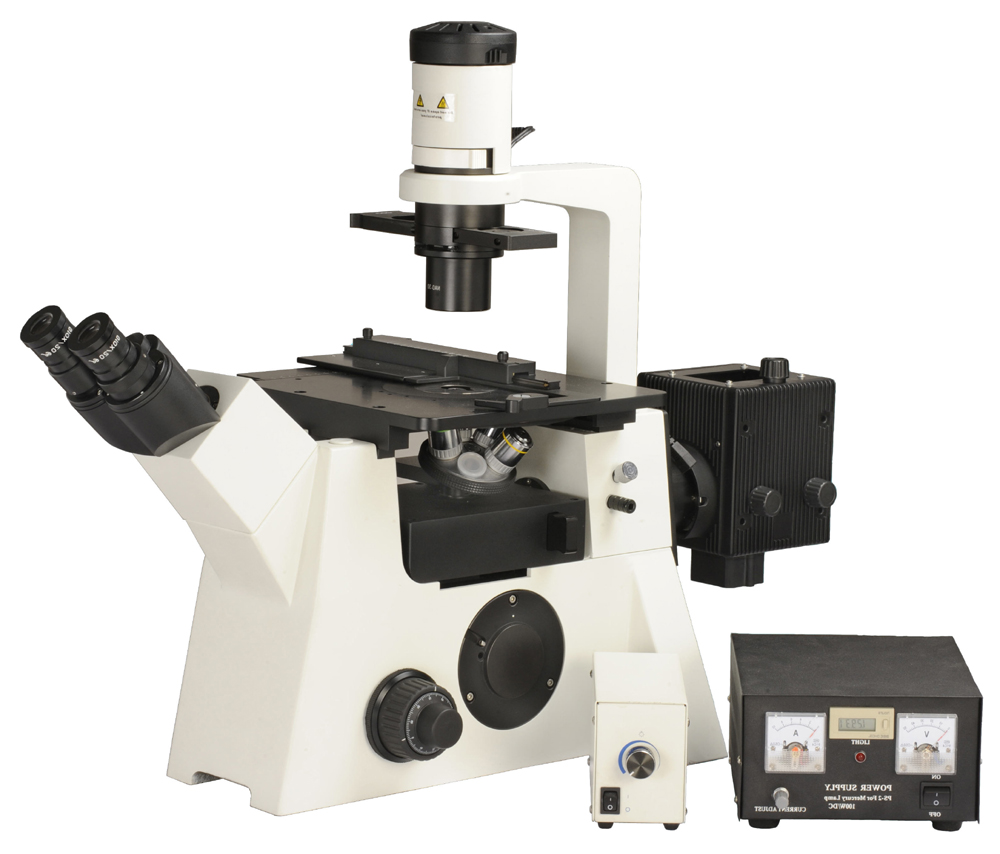

Flouresan Mikroskop

Esnek ve modern görünümü ile tek bir mikroskop ile dört farklı metod da numune inceleme imkanına sahiptir. Faz kontrast gözlemleri için uygulamaların ihtiyaçlarını karşılayan, floresan, polarizasyon, dijital kamera ve CCD adaptörü kolay adapte özelliğine sahiptir .

72mm ultra uzun çalışma mesafesi kondenser kültür yemek için yeterli alan sağlar.UV floresans heyecanlı parça dört çeşit, V, B ve G. ile konfigüre edilebilir

Floresan ve aydınlık alan arasındaki gözlem modunu değiştirebilirsiniz. Floresan cihaz 100w cıva lambası kutusu ile donatılmıştır.
Specifications
XJF500
Optical System
Infinity Optical System F=200mm
s
Viewing Head
Siedentopf trinocular head, interpupillary distance 52~75mm, 45°inclined,diopter adjustable
s
Eyepiece
WF10X/20mm, High eye-point up to 21mm
ss
WF10X/22mm, High eye-point up to 21mm
o
WF16X/14mm
o
WF10X/20mm (Pointer), High eye-point up to 21mm
o
WF10X/22mm (Pointer), High eye-point up to 21mm
o
WF10X/20mm (Reticule), High eye-point up to 21mm
s
WF10X/22mm (Reticule), High eye-point up to 21mm
o
Nosepiece
Quintuple
s
Long Work-distance Objectives
Plan Achromatic 4X/0.13 WD=12.86mm
o
Plan Achromatic 10X/0.25 WD=9.67mm
s
Plan Achromatic 20X/0.40 WD=7.97mm
s
Plan Achromatic 40X/0.60 WD=3.76mm
s
Positive Phase-Contrast Objevtives
Plan Achromatic 10X/0.25 WD=9.67mm
o
Plan Achromatic 20X/0.40 WD=7.97mm
s
Plan Achromatic 40X/0.60 WD=3.76mm
o
Negative Phase-Contrast Objectives
Plan Achromatic 10X/0.25 WD=9.67mm
o
Plan Achromatic 20X/0.40 WD=7.97mm
o
Plan Achromatic 40X/0.60 WD=3.76mm
o
Stage
Fixed stage: 240×260mm, low-position co-axial flexible adjusting handle, travel: 135×85mm
s
Slide Plate(?118mm), replaceable
s
Slide Plate(76×26mm, ?60), replaceable
s
Mechanical stage: 350×208mm, X/Y travel: 50×50mm, low-positioned co-axial flexible adjusting handle.
o
Transmitted light Illumination
72mm extreme long work distance condenser, NA=0.3, with iris diaphragm, 6V 30W halogen lamp house, filter jack
s
Phase-contrast slide, makes it easy to change between 10X, 20X, 40X phase-contrast and brightfield observation.
s
6V 30W Osram halogen lamp
s
External power, wide voltage (100V / 240V)
s
Fuse tube: 250V 3.15A ?5×20
s
Blue filter (?34)
s
Green filter (?34)
s
Yellow filter (34)
s
Nosepiece
Quintuple, Inward facing.
s
C-Mount
1X
o
0.5X
s
0.25X (Fit 1/3"CCD)
o
Digital Camera Joint
(Please advice your digital camera brand and model in advance)
o
Reflected Flourescence Attachment
DC Hg Fluorecence lamphouse 100W
s
Mercury lamp 100W
s
Mercury lamp 100W (Osram)
o
Filter turret
s
Iris aperture adjusting handle
s
DC Hg Power source house 100W
s
Fuse tube: 250V 5A ?5×20
s
UV Excitaion Filter (I Grade, imported)
o
V Excitation Filter (I-Grade,imported)
o
B Excitation Filter (I-Grade,imported)
o
G Excitation Filter (I-Grade,imported)
o
UV Excitaion Filter (C-Grade,made in China)
o
V Excitation Filter (C-Grade,made in China)
o
B Excitation Filter (C-Grade,made in China)
s
G Excitation Filter (C-Grade,made in China)
s
Dust Cover

s
Operation Manual

s
Allen Screw Driver
?2mm
s
?2.5mm
s
?3mm
s
Power Wire
CE Certified
s
Package
Inner: Foam, Plastic Bag;
Outer: Carton
s


Pack: 1 carton, G.W.: 40KGS, Meas.: 70*70*41.5CM



s:Standart aksesuar o:Opsiyonel aksesuar
